MODULAR DIESEL POWER PLANT ADES -MKZ-16
Address: isl. Sakhalin
Year of commissioning: 2019
Modular-Packaged Power Plants (MPPP) is designed for providing external consumers with electrical energy as a standby power supply in the mode of minimal periodical maintenance.
MPPP is operated on the twenty-four-hour basis under the following climatic conditions:
- ambient temperature:
- absolute minimum – 42,2°С;
- absolute maximum +33,9°С;
- average air temperature of the coldest month – minus 16,4°С;
- average air temperature of the hottest month – plus 19,9°С;
- average air temperature of the coldest five day period – minus 32°С;
- design value of the snow load not higher than – 4.0 kPa;
- seismicity not more than – 8 degrees;
- rated value of the wind pressure – 60 kg/sq.m
- installation height above the sea level – no 29 m;
MPPP includes the following subsystems:
- mobile building;
- power supply system;

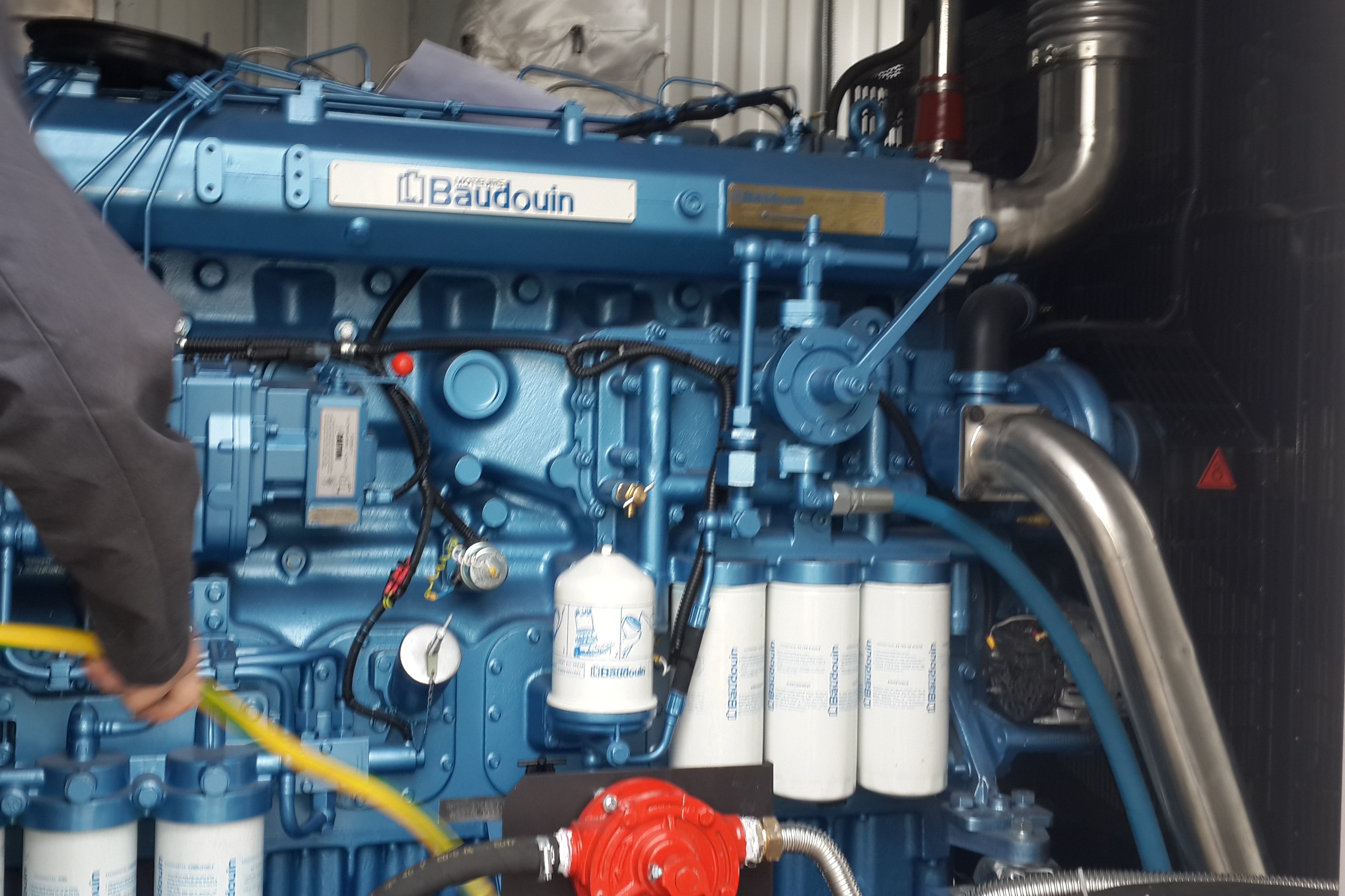

- DGU А(/E) D500S-Т400-2R(N/P) with own needs system (SN);
- fuel system:
- oil system;
- exhaust system;
- breather system;
- lighting system (working, emergency, external, repair);
- climate control system (heating and ventilation);
- monitoring and control system.
- SFAS and Automated gas fire-fighting system (AGFFS);
- spares and tool kit;
- personal protection equipment kit (PPE)

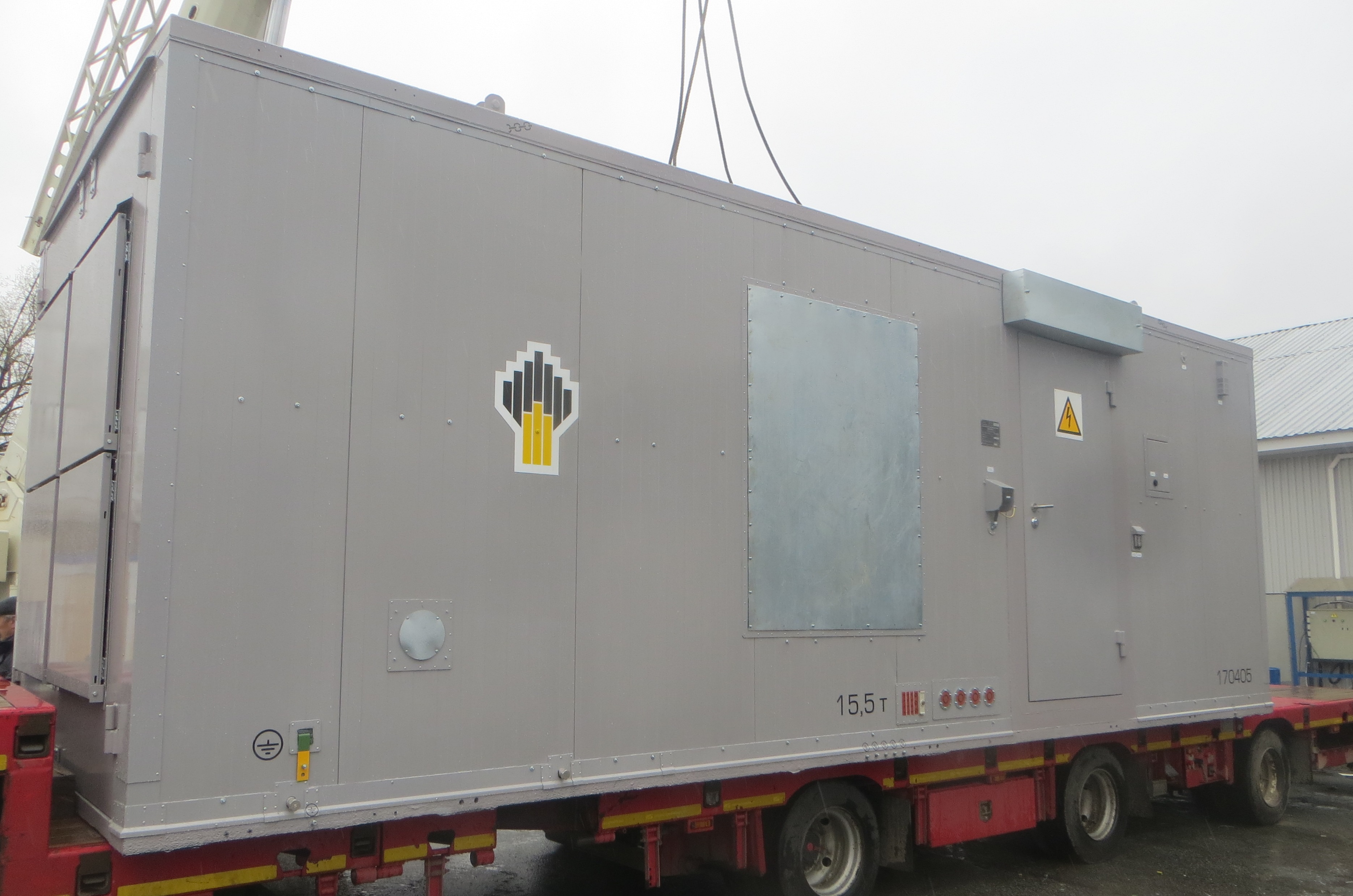

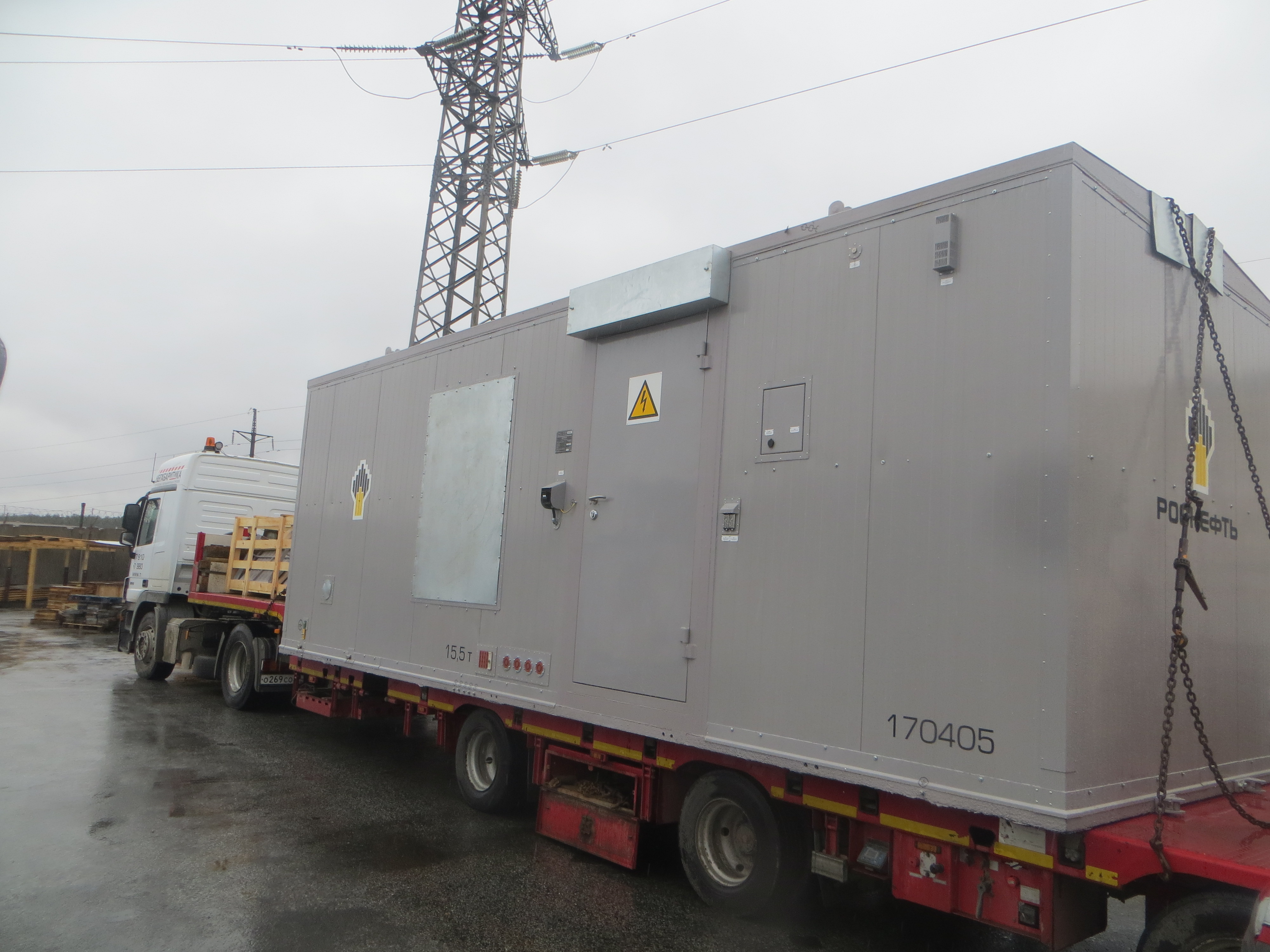

Overall dimensions of MPPP in the transport position without due regard to individually protruding parts, not more than:
- length – 8,000 mm;
- width – 3,000 mm;
- height – 3,000 mm.
Overall dimensions of MPPP in the deployed position with due regard to exhaust system, protection canopies and service platforms, not more than:
- length – 8,635 mm;
- width – 4,675 mm;
- height – 5,360 mm.
- MPPP full weight, not more than – 15,500 kg.
- MPPP fire resistance class as per FZ-123–II.
- Structures fire hazard class as per FZ-123 of 22.07.2008 –C0.
- Functional fire hazard class as per FZ-123 of 22.07.2008 –F.5.1.
- Climatic version as per GOST 15150-69 – UHL1.
- The mobile building service life – at least 20 years
- Engineering equipment service life – at least 10 years
- AC input/output voltage value – 380 V, 50 Hz
